Utilizing the Contiki Cooja simulator in an educational or research field is a challenging but rewarding task. This needs a wide range of understanding in Contiki OS and Cooja simulator. Only experts can handle your work like a pro so leave all your work to us. The following is a basic summary of the suitable functioning method that we offer you when implementing this simulator:

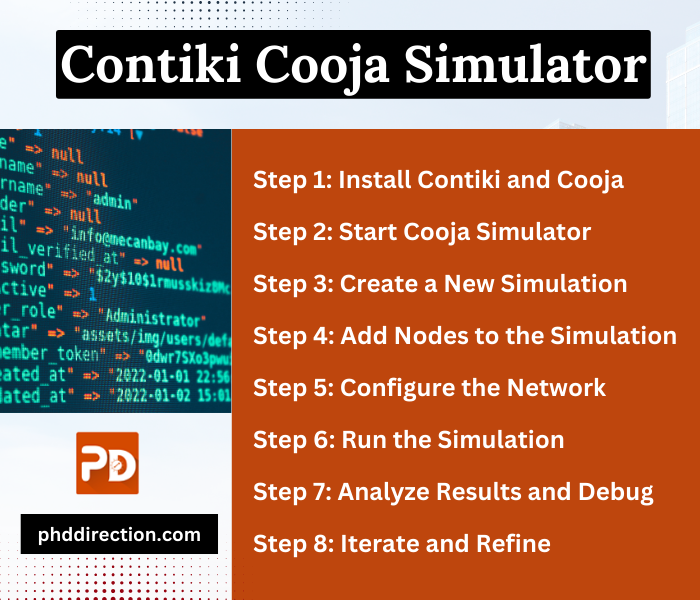

Step 1: Install Contiki and Cooja

• Confirm that you have the Cooja simulator and Contiki installed on your system initially. From the authorized GitHub database, Contiki can be downloaded and as a phase of its toolset Cooja is also involved.
• Based on your operating system, installation may need particular software reliabilities. As Cooja is created in Java, the main necessity is Java.

Step 2: Start Cooja Simulator

• First navigate to the Contiki directory and next move to the tools/cooja directory.
• When you are utilizing MacOS or Linux, begin Cooja by executing the command “ant run” in a terminal. Through including an IDE such as Instant Contiki possibly, Windows users can have an alternate approach.
• You will view a GUI in which you can develop novel simulations, visualize their functioning and configure them after launching the Cooja.

Step 3: Create a New Simulation

• By clicking on the new simulation icon or by choosing “File” > “New Simulation”, you can design a novel simulation in Cooja.
• Provide a meaningful name for your simulation and configure the simulation parameters like radio medium, simulation speed and beginning duration.

Step 4: Add Nodes to the Simulation

• You can attach nodes or devices to it after the development of simulation. Nodes can be either another simulated device or motes which execute Contiki OS.
• Click “Motes” > “Add motes” > “Create new mote type” to include a node and decide on the kind of mote that you intend to simulate like Sky Mote for simulations of sensor network.
• With a unique firmware like a Contiki application which examines its activity in the network, you can configure every node.

Step 5: Configure the Network

• Inside the simulation platform, place your nodes. Simulating physical criteria such as range restrictions or signal interventions and establishing their geographic positions can be included in this step.
• The routing methods, application-particular activities and interaction protocols are involved in the configuration of network parameters and communication among nodes.

Step 6: Run the Simulation

• Begin the simulation by selecting on the “Start” button as nodes are placed and configured.
• When it runs, track the simulation process. Cooja permits you to monitor the action of the network beyond duration, visualize radio interaction and see log outputs from nodes,
• For experimenting various situations or configurations, you can change, stop and pause the simulation when required.

Step 7: Analyze Results and Debug

• To observe the simulation findings, employ the tools of Cooja along with the node-specific data like energy consumption and network metrics such as latency, throughput, and packet loss.
• Through replaying simulations to validate modifications, refining programs and analyzing the activity in the simulation, debug your Contiki applications.

Step 8: Iterate and Refine

• Do required refinements to your network configurations or Contiki applications in terms of your investigation and interpretations.
• For adjusting your setting until you attain the expected results, repeat through the process of simulation.

What is CoAP protocol in Contiki OS?

       Contiki OS is a license-free operating system for the IoT. CoAP is applied to offer weightless interaction among devices in an IoT network as part of this. To interact with other CoAP-permitted devices or services on the internet effectively, Contiki gives assistance for CoAP by enabling IoT devices executing on Contiki OS. Below are some of the primary characteristics of CoAP in Contiki OS with its uses that we consider:

Main Features of CoAP in Contiki OS:

• RESTful Interface: For offering a Representational State Transfer (RESTful) interface, CoAP is developed to combine with the web simply. Through the basic approaches such as PUT, POST, GET and DELETE likely to HTTP, devices can access and use materials on a CoAP server.
• UDP-Based: CoAP performs beyond User Datagram Protocol (UDP), contrasting HTTP that executes above TCP generally. For restricted platforms in which the overhead of TCP can be restrictive, this makes CoAP more applicable.
• Low Overhead: For mitigating the range of data which requires to be transmitted above the network, CoAP assists elective header systems and contains a small header size. To work on insufficient and low-powered bandwidth, this aspect is essential for IoT devices.
• Built-in Discovery: By allowing devices to detect services that are provided by other devices in the network, CoAP helps service finding. For the dynamic essence of IoT platforms, it is more important.
• Security: To give safe interaction among devices, CoAP combines with Datagram Transport Layer Security (DTLS). In applications where vulnerable data are sent specifically, protection is a challenging feature.
• Observation and Notifications: When the nature of those materials transforms, CoAP enables clients to observe resources and obtain alerts. Particularly for applications which need practical updates such as tracking sensors, this property is highly beneficial.

Use of CoAP in Contiki OS Projects:

       The following are a vast amount of works that CoAP can be utilized in the projects which employ Contiki OS:

• From the sensors that are separated throughout the geographic region, this gathers the data.
• In digital-house applications, it handles lights and actuators.
• Within a smart city structure, this swaps messages among IoT devices.
• Specifically for health tracking which requires transferring data to a central server, it incorporates wearable devices.
